ISO 22343 Static Terra Earth Bollards 7.2t @ 50mph

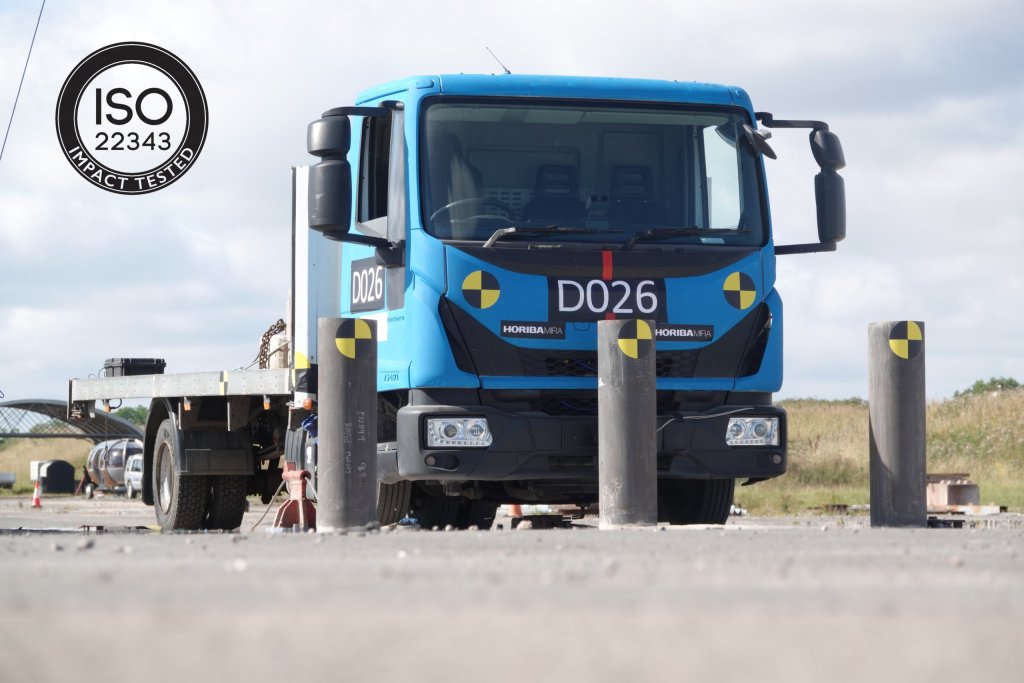

ISO22343 Static Terra Earth Bollard
ISO22343 Static Terra Earth Bollard

ISO22343 Static Terra Earth Bollard

7.2t @ 50mph

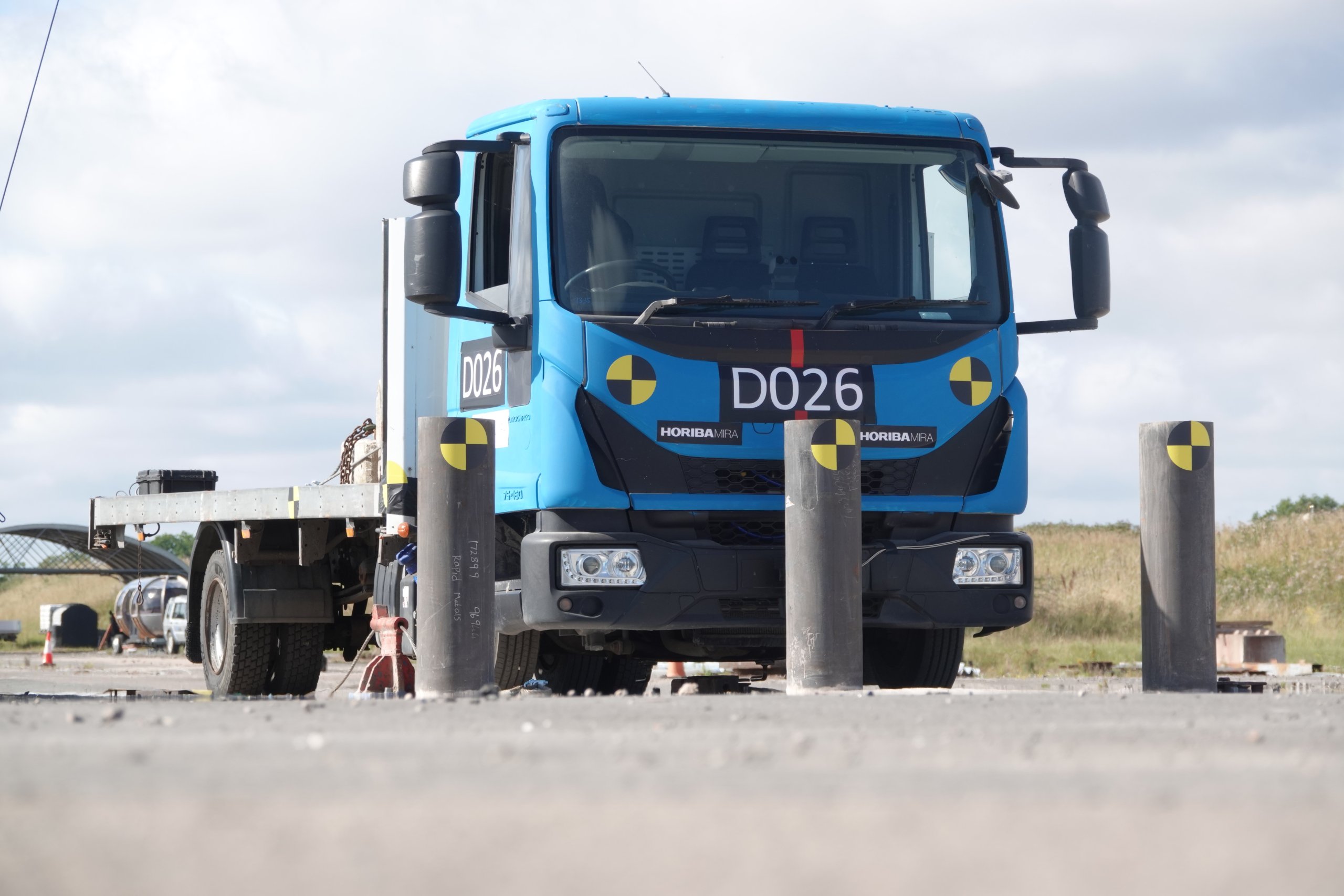

The ISO 22343 Static Terra Earth Bollard is a counter terrorist crash bollard, successfully impact tested to ISO 22343 stopping a 7.2t vehicle travelling at 50mph (80kph) which equates to 1852kJ.

ISO 22343-1 Static & Rising Bollards are required to be installed at 1200mm between upright bollard faces to meet the ISO 22343-2 installation guidelines.

Polyester Powder Coated as standard
For Sleeve options please see Accessories tab or the Bollard Sleeve page

  • 7.2t @ 50mph (1852kJ)
  • Classification Codes: V/7200[N2A]/80/90:10.5/11.1
  • ISO 22343 Tested Height above ground: 1080mm approx

Contact Technical Sales

View Case Studies

Product Brochure

Data Sheet

Drawing

Photos & Videos

ISO 22343 Static Terra Earth Bollard 7.2t@50mph Specifications

Features

The ISO 22343 Static Terra Earth Bollard 7.2t @ 50mph

    Basic Specs

  • ISO 22343 Classification Code: V Static Bollard V/7200[N2A]/80/90:1.1/37.7
  • Height above ground: 1080mm approx
  • Diameter: 298mm diameter

    • More details

  • Construction: S355 structural steel plate is a high-strength low-alloy European standard structural steel
  • Embedment Depth 500mm, Foundation Type C
  • Finish: HDG (Hot-Dip Galvanized) and epoxy coated as standard. Painted to any RAL colour
    Stock color RAL7024-Graphite Grey
  • Optional finish: 316 Stainless Steel Satin finish or bead blasted sleeves with dome or mitre tops. Other decorative sleeves available on request
  • Accreditations: Secured by Design, BRE Global

Civil Engineering

Foundation Depths of 900mm

 For more information please contact the Technical Sales Department on

01293 422800 or email:

[email protected]
Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.

Product Video



Photo Gallery

Accessories

Stainless Steel Bollard Sleeves

 Frontier Pitts have a portfolio of sleeves for our Planet range of HVM Terra Bollards. Options below include mitre and dome tops, different types of stainless steel finishes and the choice of colour bands and engraving.

Polyester Powder Coated Bollard Sleeves

Frontier Pitts have a portfolio of sleeves for our Planet range of HVM Terra Bollards. Polyester Powder Coated Sleeves pictured here with recessed banding

Mitre Top

 Stainless Steel Mitre Top. Available in five styles, including plain, single and double band designs

Semi Domed Top

 Stainless Steel Semi Dome Top. Available in five styles, including plain, single and double band designs

Finish: Satin Polished Stainless Steel

 Satin–polished 320 grit (0.5 micron) stainless steel finish

Finish: Bead Blasted Stainless Steel

 Our bead blasting stainless steel finish achieves no pitting or distortion of the final surface. N.B. distortion is dependant on material thickness

Finish: Powder Coating

 Powder coated paint finish in clients choice of RAL colour.

Reflective Banding

 Another option for the finish of the bollard is reflective banding. The reflective banding can be deemed a necessity to ensure the bollard stands out from the architecture of the landscape and/or building. Bollard banding is available in a range of colours and dimensions, with option on the number of bands on the bollard, and position (top of bollard, top and bottom of bollard). The colour of the banding can also reflect the branding of the site company.

Personalised Engraving

 In addition to reflective banding on the static bollards to incorporate the sites corporate brand image, Frontier Pitts can also provide corporate engraving on the stainless steel bollard sleeve.
