Tracked Security "Taxi Way" Sliding Gates

Tracked Security “Taxi Way” Sliding Gates

Tracked Security “Taxi Way” Sliding Gates are designed to run on a track installed in the roadway and are able to secure wide apertures. The trackwork is cast into the concrete foundation which is poured in two stages. The track is bolted down to the first pour concrete and the second pour brings the level up to finished road level. The track is normally 5mm below finished road level.

The Sliding Gate is 100% duty rated – designed for continuous & frequent use. Power is supplied from a single phase 230V supply.

Frontier Pitts have manufactured “Taxi Way” and Automated Border Control ‘ABC Gates’ Security Sliding Gates securing 120 metre apertures!

Sliding Gate Safety control systems: Vehicle detector loops, safety photocells, ultra-sonic sensors and safety edges are available. Accessories: Signage, audible alarms and flashing beacons. For Gate Safety, please click here

Tracked Security “Taxi Way” Sliding Gates Access controls: A wide range of access control systems are available.

Maximum aperture up to 35000mm
Standard Gate leaf height: 2400mm
Maximum Gate leaf height: 5000mm
Bespoke Available

Contact Technical Sales

Tracked “Taxiway” Sliding Gates Specifications

Features

The Tracked Security “Taxiway” Sliding Gates

Basic Specs

Tracked Security “Taxiway” Sliding Gates Maximum aperture up to 35000mm

Standard Gate leaf height: 2400mm

Maximum Gate leaf height: 5000mm

Bespoke Available

More details

Construction: The sliding gate leaf is a fully welded construction of rectangular hollow section, low carbon steel to BS4848 Pt.2. Combination of vertical 50mm x 25mm ERW bar infill at approximately 180mm centres backed by 50mm square galvanised weld mesh, painted to match

Finish: Various options available, including:
Shotblasted, hot zinc sprayed, primed & finished with a final coat of polyurethane paint. Client to advise RAL paint number. This process provides a 20-year corrosion protection system for exterior, industrial polluted inland sites to BS5493, 1977 (Revised 1984).

Various security infills available including bar, security weldmesh, sheet, and bespoke such as wood and ornate.

100 % Operating duty cycle – designed for continuous & frequent use.

Typical operating speeds of 225-500mm/second* depending on configuration.

Sliding Gate Safety control systems: Vehicle detector loops, safety photocells, ultra-sonic sensors and safety edges are available.

SSliding Gates Accessories: Signage, audible alarms and flashing beacons.

Accreditations: Secured by Design, BRE Global

Civil Engineering

Shallow Foundation Depths of only 300mm

For more information please contact the Technical Sales Department on

01293 422800 or email:

[email protected]

Electrical Engineering

Industry standard electricals

Electrical Requirements Single phase, depending on configuration

Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.

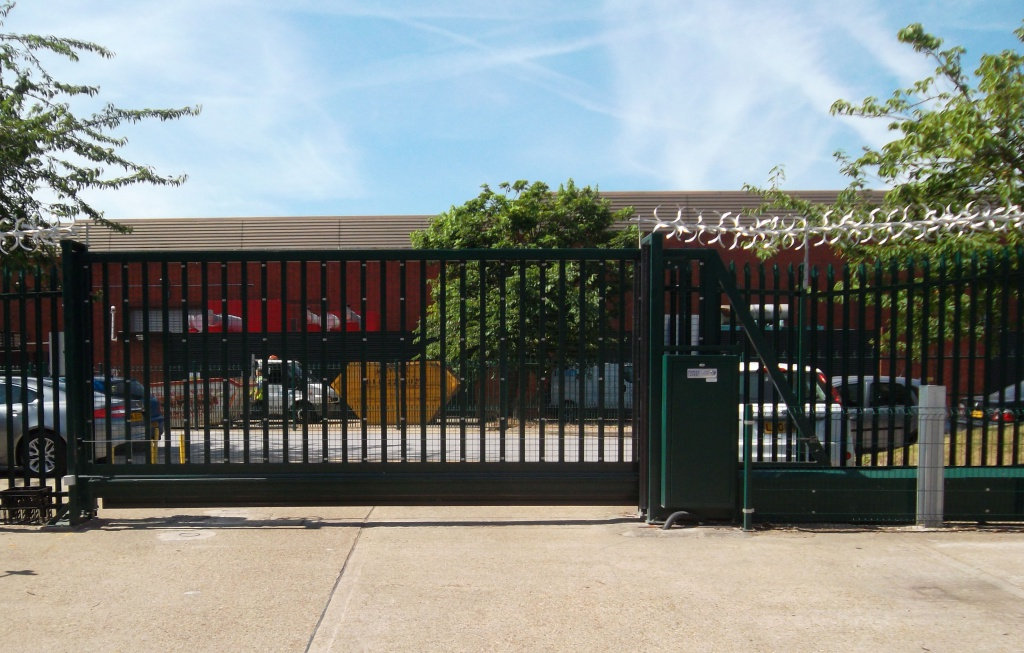

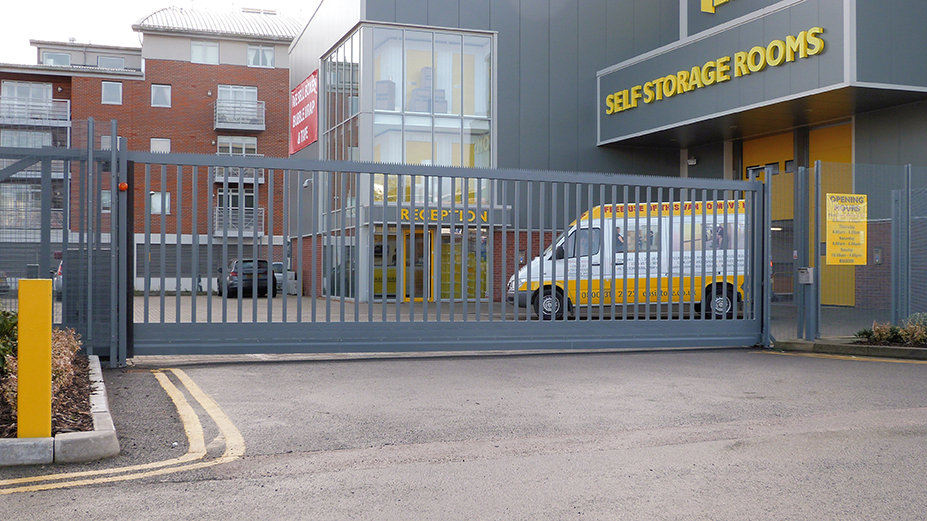

Photo Gallery

Accessories

Signage	Warning and information signs installed on the barrier boom such as ‘STOP’ ‘NO EXIT’ and ‘NO ENTRY’
Pedestrian Warning Sign	Normally placed on the barrier cabinet. Warns pedestrian of the automatic barrier.
Traffic Light System	Traffic Light systems are highly recommended to be installed with all road blocker and bollard systems to advise all users of its position. 100mm traffic light head can be pole or mounted on control cabinet
Vehicle Detector Loops	Vehicle detector loops installed beneath the road surface to detect vehicles. This will prevent the automatic equipment from closing on a vehicle within the aperture. Safety induction loops cut into the road surface. This will prevent the gate from closing on a vehicle within the aperture.
Safety Photocells	Safety Photocells produce beams of light which cross the road way to monitor vehicle and pedestrian movement. If an object breaks this beam, the automatic equipment will stop & reverse. On gate installations, two pairs of photocells are usually fitted. Ultra Sonic Sensors are also available.
Gate Safety Edge	Safety Edges are normally fitted to automatic gates. However they can also be installed beneath a barrier boom. Safety edges prevent the barrier lowering on a person or vehicle in the event it is activated. Safety edges are flexible strips which, if depressed, send a signal to the power source to stop.
Pedestrian Guard Rail	A Pedestrian Guard Rail (fence panels) should be fitted around the runback area of the sliding gate. This is to prevent serious injury to a person should they stray into that area whilst the gate is operating.
Gate Infill	Weldmesh should be clipped to the gates infill bars infill to prevent pedestrians putting their limbs through. Other infills include palisade pales, sheet and wood infills. For more information please Security Gate Infills page
Sounder	Sounders/Audible Alarms provide an audible warning that the automatic equipment is in operation.
Flashing Beacon	Flashing Beacons provide a visual warning that the automatic equipment is in operation.
