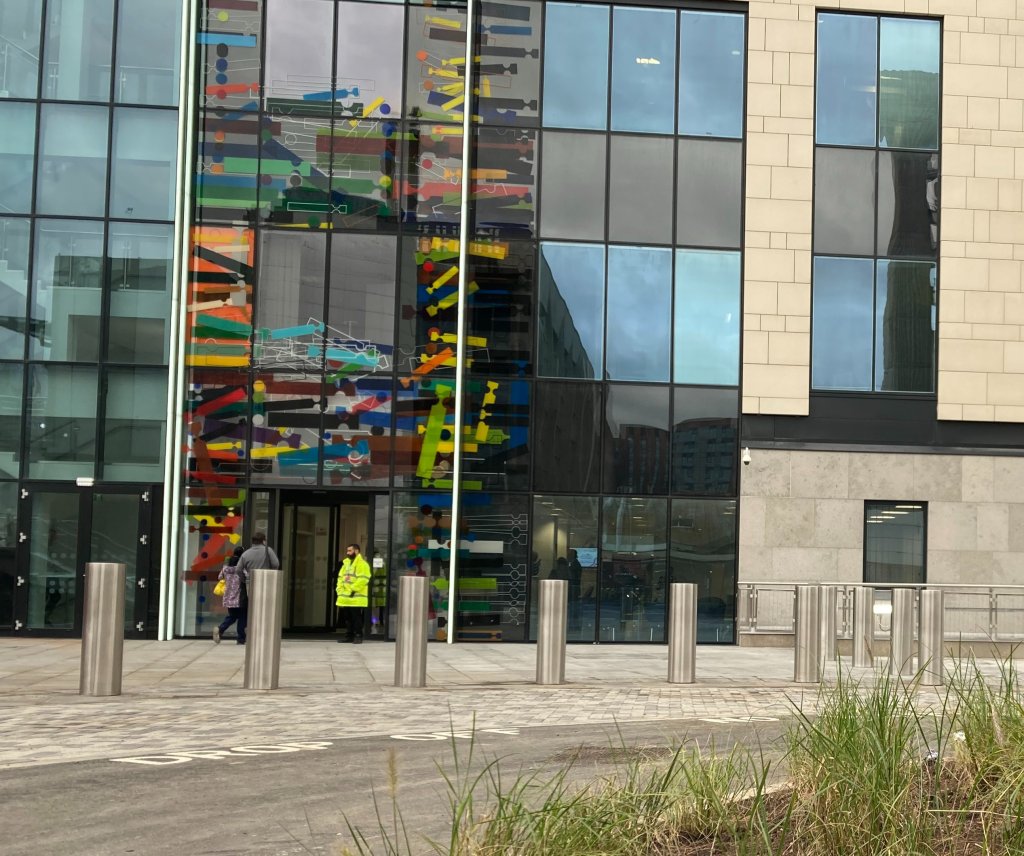

PAS 68 Static Terra Jupiter Bollards 7.5t @ 50mph

  • PAS 68 7.5t @ 50mph – Static
  • The PAS 68 Static Terra Jupiter Bollard is a counter terrorist crash bollard, successfully PAS 68 impact tested stopping a 7.5t vehicle travelling at 50mph (80kph) which equates to 1852kJ.

    BSi PAS 68 Static & Rising Bollards are required to be installed at 1200mm between upright bollard faces to meet BSi PAS 69 guidelines.

    Polyester Powder Coated as standard
    For Sleeve options please see Accessories tab or the Bollard Sleeve page

    • 7.5t @ 50mph (1852kJ)
    • Classification Codes: V/7500[N3]/80/90:10.5/11.1
    • PAS 68 Tested Height above ground: 1080mm
    • Also available: Removable Terra Jupiter Bollards

    PAS 68 Static Terra Jupiter Bollard [email protected] Specifications

    Features

    The PAS 68 Static Terra Jupiter Bollard 7.5t @ 50mph

      Basic Specs

    • PAS 68 Classification Code: V Static Bollard/7500[N3]/80/90:10.5/11.1
    • Height above ground: 1080mm
    • Diameter: 273mm diameter
    • More details

    • Construction: S355 structural steel plate is a high-strength low-alloy European standard structural steel
    • Embedment Depth 500mm, Foundation Type C
    • Finish: Shotblasted, hot zinc sprayed (galvanised), primed and finished with a final coat of polyurethane paint.
    • Optional finish: 316 Stainless Steel Satin finish or bead blasted sleeves with dome or mitre tops. Other decorative sleeves available on request
    • Accreditations: Secured by Design, BRE Global

    Civil Engineering

    Embedment Depths of only 500mm

    For more information please contact the Technical Sales Department on

    01293 422800 or email:

    [email protected]

    Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.

    Product Video



    Photo Gallery

    Accessories

    Stainless Steel Bollard Sleeves

    Frontier Pitts have a portfolio of sleeves for our Planet range of HVM Terra Bollards. Options below include mitre and dome tops, different types of stainless steel finishes and the choice of colour bands and engraving.

    Polyester Powder Coated Bollard Sleeves/h3>

    Frontier Pitts have a portfolio of sleeves for our Planet range of HVM Terra Bollards. Polyester Powder Coated Sleeves pictured here with recessed banding

    Mitre Top

    Stainless Steel Mitre Top. Available in five styles, including plain, single and double band designs

    Semi Domed Top

    Stainless Steel Semi Dome Top. Available in five styles, including plain, single and double band designs

    Finish: Satin Polished Stainless Steel

    Satin–polished 320 grit (0.5 micron) stainless steel finish

    Finish: Bead Blasted Stainless Steel

    Our bead blasting stainless steel finish achieves no pitting or distortion of the final surface. N.B. distortion is dependant on material thickness

    Finish: Powder Coating

    Powder coated paint finish in clients choice of RAL colour.

    Reflective Banding

    Another option for the finish of the bollard is reflective banding. The reflective banding can be deemed a necessity to ensure the bollard stands out from the architecture of the landscape and/or building. Bollard banding is available in a range of colours and dimensions, with option on the number of bands on the bollard, and position (top of bollard, top and bottom of bollard). The colour of the banding can also reflect the branding of the site company.

    Personalised Engraving

    In addition to reflective banding on the static bollards to incorporate the sites corporate brand image, Frontier Pitts can also provide corporate engraving on the stainless steel bollard sleeve.
