LPS 1175 Platinum Turnstile B3

***LPS 1175 Platinum Turnstile B3 with a 120 DEGREE/3 SECTION WALKWAY – THE FIRST SECURITY RATED LPCB TURNSTILE TO BE AVAILABLE WITH 120 DEGREE/3 SECTION WALKWAY***

B3 (equivalent of SR2)

LPS1175 Platinum Turnstile Security Rating B3

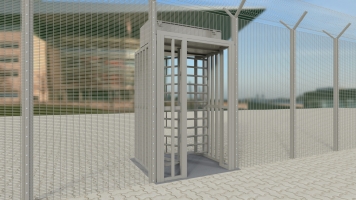

The first LPCB LPS1175 Security Rated Turnstile available with a 120° rotor (3 section walkway)

The Platinum Turnstile successfully resisted an intensive attack test programme in accordance with LPS 1175: Issue 8 to Security Rating B3; toolkit B for 3 minutes. This involved a series of attack tests each lasting at least 3 minutes using a wide array of hand tools and battery powered tools.

Heavy duty, high security turnstile
Anti Return solenoid lock
Power locking bolt – provides turnstile lock down
Turnstile seeks next lock position.
Designed and proven to withstand a considerable degree of physical attack
Extra high security with a full CPNI approved fence line integration and fixing
Robust steel rotor with the option of 120° (3 section walkway) or 90°(4 section walkway) rotor
Reinforced high security lid
Painted to clients choice of RAL colour
AC Interface and microprocessor control board
Status indicator with red & green light
Heavy duty, vandal resistant head mechanism
Fail secure – turnstile will remain secure during power failure.
BS EN 1627:2011 Requirements and classification for Pedestrian doorsets, windows, curtain walling, grilles and shutters. Burglar resistance.
Installed in many Nuclear & Utility sites Nationally and Internationally

Red Book Listing

Contact Technical Sales

BIM & NBS Specifications

LPS 1175 Platinum Turnstile B3 – Specifications

Features

LPS 1175 Platinum Turnstile B3

Basic Specs

LPS 1175 Platinum Turnstile B3 – Specifications

Robust steel rotor with the option of 120° (3 section walkway) or 90°(4 section walkway) rotor

Height: 2387mm

More details

Construction: High-strength steel blades

Finish: Various options available, including: Shotblasted, hot zinc sprayed, primed & finished with a final coat of polyurethane paint. Client to advise RAL paint number. This process provides a 20-year corrosion protection system for exterior, industrial polluted inland sites to BS5493, 1977 (Revised 1984). Alternatively, acid dipped then hot galvanized. Any colour in the RAL colour range.

Options: Red/Green Indicator Lights, Manual release handle, LED walkway lighting

Duty cycle: 100% duty rating

BS EN 1627:2011 Requirements and classification for Pedestrian doorsets, windows, curtain walling, grilles and shutters. Burglar resistance.

Controls: The programmable logic controller (PLC) with built in safety features will accept inputs from access control systems including access card, voice, etc. Push button as supplied as standard

Civil Engineering

For more information please contact the Technical Sales Department on

01293 422800 or email:

[email protected]

Electrical Engineering

Industry standard electricals

Electrical Requirements: 230v 50Hz 2 amp supply single phase, depending on configuration

Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.

Product Video

Photo Gallery

Accessories

Signage

Warning and information signs such as ‘STOP’ ‘NO EXIT’ and ‘NO ENTRY’

Turnstile Special Colour Finish

Turnstiles can be finish in clients choice of RAL colour. Frontier Pitts are able to suit a company’s individual corporate theme, even down to different colour rotors.

Turnstile Lights

Lights available in the lid of the turnstile
