HVM – Hostile Vehicle Mitigation
Frontier Pitts manufacture a range of Hostile Vehicle Mitigation which has been successfully vehicle impact tested to IWA14 and PAS68 stopping 7.2t/7.5t vehicle travelling at a range of speeds and energies. Our portfolio includes Terra Gates, Terra Barriers, Terra Bollards and Terra Blockers.
What are the vehicle impact test specifications?
IWA14-1
PAS68
For guidance on how to install Hostile Vehicle Mitigation please also click on the following specifications
IWA14-2
PAS69
HVM – Hostile Vehicle Mitigation – IWA14 & PAS68
To see case studies of our previous installations, please click here
Click on the bars below to toggle open / close the category
IWA 14 Hostile Vehicle Mitigation & LPS1175: Issue 8 B3 (SR2) Terra Bifolding Gates – Secured by Design

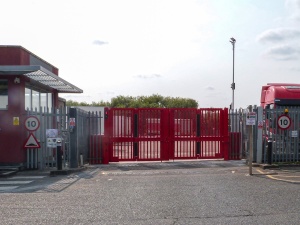

IWA 14 & LPS1175 Terra Bi-fold Gate
The FIRST DOUBLE HOSTILE VEHICLE MITIGATION (HVM) BI-FOLD GATE IN THE WORLD!!
**Now also certified to LPS1175:Issue 8 B3 (SR2)**
Terra Bi-folding Gate
Certified to LPS1175 Issue 8 Security Rating B3 (SR2) Cert/LPCB Ref: 1059d/02
Certified to IWA14-1:2013 Cert/LPCB Ref: 1059e/01
IWA 14 & PAS 68 Hostile Vehicle Mitigation Hinged/Swing Gates – Secured by Design
PAS 68 Terra V Gate
Bi-parting pair Swing Gates which can be automated. Hostile Vehicle Mitigation
IWA 14-1 Terra Ultimate 180° Hinged Gate
Enhanced version of the Bi-directional Manual Swing Counter Terrorist (CT) Barrier. Hostile Vehicle Mitigation
IWA 14-1 Terra 180° Hinged Gate
Enhanced version of the Bi-directional Manual Swing Counter Terrorist (CT) Barrier. Hostile Vehicle Mitigation
PAS 68 Terra Swing Gate
Manual Swing Barrier
Hostile Vehicle Mitigation
IWA 14 & PAS 68 Hostile Vehicle Mitigation Sliding Gates – Secured by Design
IWA 14 Terra G8 Sliding Cantilevered Gate
8m+ width HVM Gate
Hostile Vehicle Mitigation
PAS 68 Terra Sliding Cantilevered Gate
Width up to 6000mm
Hostile Vehicle Mitigation
PAS68 Terra Gate
Hostile Vehicle Mitigation. The PAS 68 Impact Tested Tracked Sliding Gate; impact tested in the half open & fully closed positions.

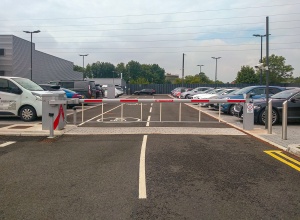

IWA 14 & PAS 68 Hostile Vehicle Mitigation Terra Barriers – Secured by Design
Impact tested to the PAS 68 specification with 3.5t @ 30mph
Secures a maximum aperture up to 6m. Bespoke available.
Hostile Vehicle Mitigation, Secured by Design
Impact tested to the PAS 68 specification with 7.5t @ 50mph
Secures a maximum aperture up to 4.5m. Bespoke available.
Hostile Vehicle Mitigation, Secured by Design
Impact tested to the International IWA 14 specification with
7.2t @ 50mph (80kph)
Secures a maximum aperture of 10m.
Hostile Vehicle Mitigation. Bespoke available.
Impact tested to the International IWA 14 specification with
7.2t @ 30mph
Secures a maximum aperture of 10m.
Hostile Vehicle Mitigation. Bespoke available.
IWA 14 & PAS 68 Hostile Vehicle Mitigation Terra Bollards – Secured by Design
IWA 14 & PAS 68 Hostile Vehicle Mitigation Rising Terra Bollards – Secured by Design
The HVM retractable bollard impact
tested to IWA 14 with 7.2t @ 80kph
Lift Height 1000mm. Interchangeable sleeves to match the static range of bollards
The HVM retractable bollard impact
tested to IWA 14 with 7.2t @ 48kph (30kph)
Lift Height 1000mm.
Automatic
Impact tested to PAS 68 – 7.5t @ 30mph
Lift Height 925mm.
Non-powered
Impact tested to PAS 68 – 7.5t @ 30mph
Lift Height 925mm.
The HVM retractable bollard impact
tested to PAS 68 with 7.5t @ 50mph
Fully Functional After Impact
Lift Height 900mm. Bespoke available.
IWA 14 & PAS 68 Hostile Vehicle Mitigation Static Terra Bollards – Secured by Design
The PAS 68 Static Terra Jupiter Bollard is a counter terrorist crash bollard, successfully PAS 68 impact tested stopping a 7.5t vehicle travelling at 50mph (80kph) which equates to 1852kJ.
The PAS 68 Static Terra Neptune Bollard is a counter terrorist bollard, successfully PAS 68 impact tested stopping a 7.5t vehicle travelling at 40mph (64kph) which equates to 1185kJ.
The PAS 68 Static Terra Mars Bollard is a counter terrorist bollard, successfully PAS 68 impact tested stopping a 7.5t vehicle travelling at 40mph (65kph) which equates to 1185kJ.
The PAS 68 Static Terra Venus Bollard is a counter terrorist bollard, successfully PAS 68 impact tested stopping a 7.5t vehicle travelling at 30mph (48kph) which equates to 667kJ.
The IWA 14 Static Terra Comet Bollard is a counter terrorist bollard, successfully IWA 14 impact tested stopping a 3.5t vehicle travelling at 30mph (48kph).

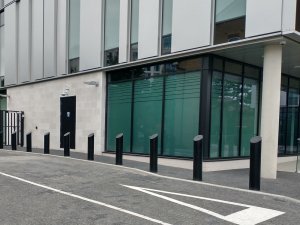

IWA 14 & PAS 68 Hostile Vehicle Mitigation Shallow Static Terra Bollards – Secured by Design
NEW!! The Ultra Shallow HVM IWA14 Terra Lunar Bridge Bollard, impact tested stopping 7.2t at 30mph at a shallow angle of 30degrees
The IWA 14 Shallow Static Terra Jupiter Bollard is a counter terrorist bollard, successfully IWA 14 impact tested stopping a 7.2t vehicle travelling at 50mph (80kph)
The PAS 68 Single Standalone Shallow Static Terra Neptune Bollard is a counter terrorist bollard, successfully PAS 68 impact tested stopping a 7.5t vehicle travelling at 40mph (64kph) which equates to 1185kJ.
The PAS 68 Shallow Static Terra Mars Bollard is a counter terrorist bollard, successfully PAS 68 impact tested stopping a 7.5t vehicle travelling at 40mph (65kph) which equates to 1185kJ.
The PAS 68 Shallow Static Terra Venus Bollard is a counter terrorist bollard, successfully PAS 68 impact tested stopping a 7.5t vehicle travelling at 30mph (48kph) which equates to 667kJ.
PAS 68 Hostile Vehicle Mitigation Removable Static Terra Bollards – Secured by Design
Removable Static Terra Jupiter Bollard 7.5t @ 50mph
Removable Static Terra Neptune Bollard 7.5t @ 40mph
Removable Static Terra Mars Bollard 7.5t @ 40mph
Removable Static Terra Venus Bollard 7.5t @ 30mph
Manufactured as standard with a Painted Finish.
A portfolio of Stainless Steel Sleeves available
IWA 14 & PAS 68 Hostile Vehicle Mitigation Terra Blockers – Secured by Design
The latest Terra Blocker model has been successfully impact tested to the International IWA 14 specification, stopping a 7.2t N2A vehicle travelling at 50mph (80kph).
The latest model of HVM Terra Blocker with Shallow Mount Technology, successfully impact tested to the new International IWA 14 specification stopping a 7.2t vehicle travelling at 80kph (50mph). The IWA 14 Terra Shallow Blocker tests resulted in the vehicle being stopped within the aperture.
The ONLY surface mounted HVM Blocker to be successfully impact tested to the BSi PAS 68 specification AND remain bolted in its original position during and after impact.
The latest model of Terra Blocker is the MkII which has been successfully impact tested to the BSi PAS68 specification, stopping a 7.5t vehicle travelling at 30mph (48kph) which equates to 667kJ. The PAS 68 Terra Blocker tests resulted in the vehicle being stopped within the aperture.
The K12 Terra Blocker has been successfully impact tested to Department of State K12 L3 standard, now replaced by the ASTM M50 P1 standard. This means the K12 Terra Blocker successfully stopped an American 6.8t vehicle travelling at 80kph (50mph).
The HCIS Terra Blocker has been specifically designed to meet the requirements with the Kingdom of Saudi Arabia’s (KSA) Ministry of Interior, HCIS Security Directives for crash barriers.
