Automatic Barrier model FBA – max 7.5m boom

Frontier Pitts new FBA Barrier is a popular and versatile rapid action automatic rising car park barrier, with built in digital safety controls and fully compliant to current HS standards.

With the Frontier Pitts Automatic Barrier stying to match its predecessors, it has a modern cabinet finished in RAL 7035. The barrier will be available in boom lengths up to 7500mm with the option of boom traffic LED lights and many other features.

The FBA Automatic Barrier comes with an industry leading reliable fully tested mechanism with ultra-smooth motion for intensive use. It is simple to install and easy to maintain.

Applications: A traffic control automatic barrier installed on a wide range of sites around the World. Suitable for industrial units, commercial complexes, hospitals, hotels, office buildings, schools and universities.

Maximum boom length: 7500mm

Automatic Barrier model FBA Access Controls: A wide range of access control systems are available.

Automatic Barrier model FBA Safety Control Systems: Vehicle detector loops and safety photocells are available.

FBA Barrier Enquiry form

Contact Technical Sales

Automatic Barrier model FBA Specifications

Features

The FBA Automatic Barrier

Basic Specs

Maximum boom length: 7500mm

End Rests: Fixed

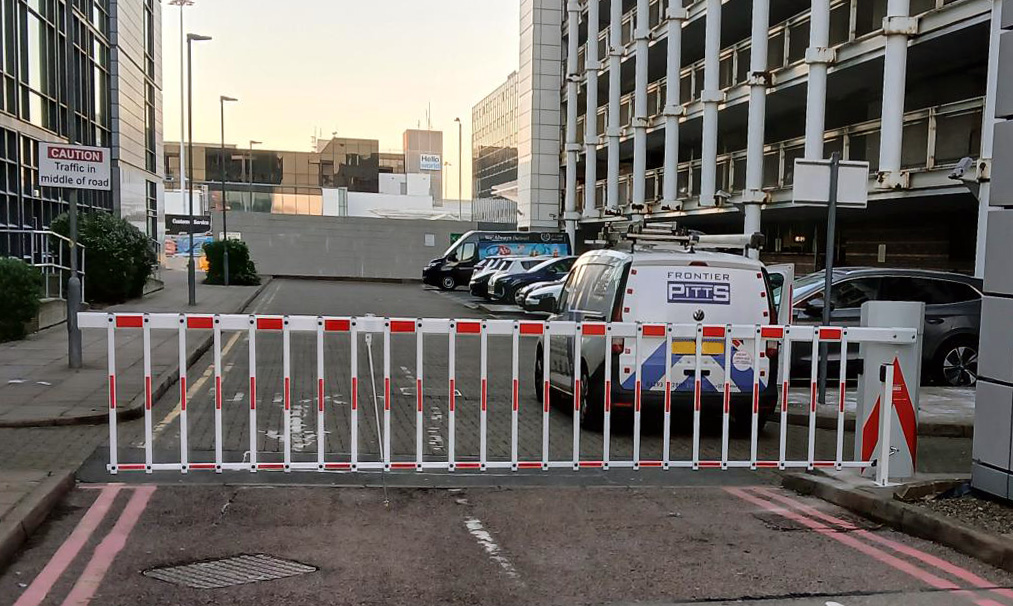

Lower folding skirt: 6000mm

Swivel Skirt: 4500mm

More details

Finish The cabinet is protected by a finish system comprising; de-greasing, shot blasting to clean metal, zinc rich powder prime and polyester powder coat. Boom – Aluminium, Powder Coated, White with red bands. Special colours available.

Safety: Signs, Vehicle detector loop systems, safety photocells

Controls: The programmable logic controller (PLC) with built in safety features will accept inputs from access control systems including access card, voice, etc. Push button as supplied as standard

Operating Speed: 4-12 seconds, dependent upon boom length, motor and skirt options

Civil Engineering

Barrier Foundations: 600mm2 x 450mm deep.
Fixed end rest foundations: 400mm2 x 300mm deep.
Note: Power and control wiring ducts to be incorporated into foundations.
For more information please contact the Technical Sales Department on

01293 422800 or email:

[email protected]

Electrical Engineering

Industry standard electricals

Electrical Requirements 6 amp, 3 wire, 230v, 50hz, single phase supply.
Depending on configuration
Only single phase supply required
Override switch inside cabinet
Switched fuse supply double pole insulator
Easy accessible fuse unit

Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.

Photo Gallery

Accessories

LED strip lights on barrier boom	LED light strip on barrier boom
Barrier Signage	Warning and information signs installed on the barrier boom such as ‘STOP’ ‘NO EXIT’ and ‘NO ENTRY’
Fixed End Rest	Frontier Pitts recommends an end rest for barriers with booms over 4 metres. Fixed end rests are bolted to the ground and require a foundation base of 400mm SQ x 300mm deep.
Safety Radar	The Radar Sensor is a 79GHz millimetre wave radar that can automatically detect the proximity of the vehicle to the perimeter security equipment, providing a safety sensor for pedestrians and vehicles
Vehicle Detector Loops	Vehicle detector loops installed beneath the road surface to detect vehicles. This will prevent the automatic equipment from closing on a vehicle within the aperture. Safety induction loops cut into the road surface. This will prevent the gate from closing on a vehicle within the aperture.
Safety Photocells	Safety Photocells produce beams of light which cross the road way to monitor vehicle and pedestrian movement. If an object breaks this beam, the automatic equipment will stop & reverse. On gate installations, two pairs of photocells are usually fitted. Ultra Sonic Sensors are also available.
