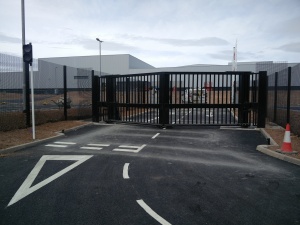

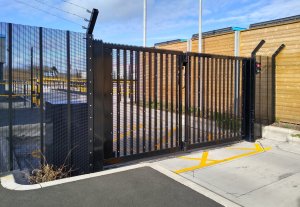

IWA14 Terra Bi-fold Gate

IWA 14 – 7.2t @ 30mph

Introducing the latest Terra Bi-folding Speed Gate which has been successfully impact tested
to the International IWA14 Specification, stopping a 7.2 ton vehicle travelling at 30mph (48kph).

**** Unique to the market this double leaf HVM Bi-folding Gate impact test resulted in minimal penetration ***

This HVM Bi-fold Gate is the perfect solution for any building or perimeter fence line bringing together Hostile Vehicle Mitigation protection from the threat of VBIED’s (vehicle borne improvised explosive devices) and LPS1175 Security Rated Automatic Gates.

Manual bi-parting pair of bi-folding gate leaves with heavy duty impact crash beam and heavy duty support posts. Hinged Gates leaves can be automated with our range of Trojan Actuators or Dutyman Actuators. Please contact the Technical Sales Department on 01293 422800 or [email protected] for more information.

Designed for easy installation and maintenance.
The Terra Bi-fold Gate can be interfaced to any access control systems.

  • Maximum width: 8000mm
  • Standard Height 2400mm
  • IWA 14 Tested dimensions : width 6000mm, height 2400mm
  • Manual Terra Bi-fold Gate Foundation Type B: Shallow embedment depths of only 350mm required, shallow foundation depths of 500mm
  • Automatic Terra Bi-fold Gate Foundation: Dependent on Actuator

IWA 14 Terra Bi-fold Gate Specifications

Features

The IWA 14 Terra Bi-fold Gate – 7.2t @ 30mph

    Basic Specs

  • IWA 14 Classification Code: V Hinged Gate /7200(N2A)/48/90:0.2
  • Standard Height: 2400mm
  • Width: Variable up to 8000mm
  • IWA 14 Tested dimensions: width 6000mm, height 2400mm
  • Manual Terra Bi-fold Gate Shallow foundations of only 350mm
  • Automatic Terra Bi-fold Gate foundations dependent on Actuator
  • More details

  • Construction: The gate is a fully welded construction of steel sections including specially designed Frontier Pitts’ Steel Impact Beam. Security Rated infills.
  • Manual Terra Bi-fold Gate Foundation Type B
  • Finish: Shotblasted, hot zinc sprayed (galvanised), primed and finished with a final coat of polyurethane paint.
  • Options: Accumulator (allows a number of operations in power failure mode), High Security Cabinet, Anti-tamper alarms
  • Safety: Safety-edges, Vehicle Detector Loops, Safety Photocells, Flashing beacon, Audible alarm Normal
  • Operating Speed/Time: 6 -15 seconds Depending on configuration
  • Duty Cycle: 100% duty rating
  • Controls: The programmable logic controller (PLC) with built in safety features will accept inputs from access control systems including access card, voice, etc. Push button as supplied as standard
  • Accreditations: Secured by Design, BRE Global

Civil Engineering

Manual Terra Bi-fold Gate Shallow Foundation Depths of only 350mm. Automatic Terra V Gate foundation dependent on actuator

For more information please contact the Technical Sales Department on

01293 422800 or email:

[email protected]

Electrical Engineering

Industry standard electricals

Electrical Requirements: Depending on actuator and configuration

Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.

Product Video



Photo Gallery

Accessories

Signage

Warning and information signs are recommended to be installed with all automatic equipment to advise users of its operation

Hinged Gate Warning Sign

Indicates and warns users of the swing of a hinged gate during opening and closing

Traffic Light System

Traffic Light systems can be installed with Automatic Gate systems to advise all users of its position. 100mm traffic light head can be pole or mounted on control cabinet

Vehicle Detector Loops

Vehicle detector loops installed beneath the road surface to detect vehicles. This will prevent the automatic equipment from closing on a vehicle within the aperture. Safety induction loops cut into the road surface. This will prevent the gate from closing on a vehicle within the aperture.

Safety Photocells

Safety Photocells produce beams of light which cross the road way to monitor vehicle and pedestrian movement. If an object breaks this beam, the automatic equipment will stop & reverse. On gate installations, two pairs of photocells are usually fitted. Ultra Sonic Sensors are also available.

Gate Safety Edge

Safety Edges are normally fitted to automatic gates. However they can also be installed beneath a barrier boom. Safety edges prevent the barrier lowering on a person or vehicle in the event it is activated. Safety edges are flexible strips which, if depressed, send a signal to the power source to stop.

Automatic Hinged Gates

For Automatic Gates, safety accessories and devices, please view the Actuator product page.

Gate Infill

Security Rated infill. For more information please Security Gate Infills page

Sounder

Sounders/Audible Alarms provide an audible warning that the automatic equipment is in operation.

Flashing Beacon

Flashing Beacons provide a visual warning that the automatic equipment is in operation.
