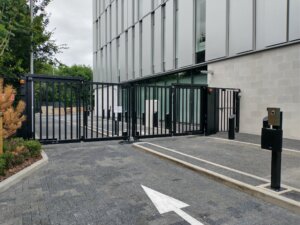

Bi-folding Speed Gates

Bi-folding Speed Gates from Frontier Pitts

The popular Bi-folding Speed Gate is a fast acting security gate which is ideal for sites where there is a limited area for the gate to open and close.

Bi-folding gates are available in various models including overhead track, bottom track or trackless.

Manual or Automatic Bi-folding Gate models available.

Automatic Bi-folding Gates are powered by actuators. For our full range of actuators, please see our Actuator page

Bi-folding Gates Safety control systems: Vehicle detector loops, safety photocells, ultra-sonic sensors and safety edges are available. Accessories: Signage, audible alarms and flashing beacons.

Bi-folding Gates Access controls: A wide range of access control systems are available.

  • Automatic Bi-folding Gate Maximum width: 10000mm
  • Standard height: 2400mm
  • Maximum height: 5000mm, depending on configuration
  • Bespoke available

Bi-folding Speed Gate Specifications


Bifolding Speed Gate

    Basic Specs

  • Automatic Bi-folding Gate Maximum width: 5000mm
  • Standard height: 2400mm
  • Maximum height: 5000mm, depending on configuration
  • Bespoke available
  • More details

  • Construction: The gate leaf is a fully welded construction of rectangular hollow section, low carbon steel to BS4848 Pt.2. Combination of vertical 50mm x 25mm ERW bar infill at approximately 180mm centres backed by 50mm square galvanised weld mesh, painted to match Standard colour range: Any colour in the RAL colour range
  • Foundation Depth Gate Post Foundation 5000mm, dependent on Automation
  • Shotblasted, hot zinc sprayed, primed & finished with a final coat of polyurethane paint. Client to advise RAL paint number. This process provides a 20-year corrosion protection system for exterior, industrial polluted inland sites to BS5493, 1977 (Revised 1984). Alternatively, acid dipped then hot galvanized available on smaller gates.
  • Safety: Safety-edges, Vehicle Detector Loops, Safety Photocells, LED Traffic ligh heads, Flashing beacon, Audible alarm
  • Duty Cycle: 100% duty rating
  • Controls: A wide range of access control systems are available.
  • Accreditations: Secured by Design, BRE Global

Civil Engineering

Dependent on Actuator. For more information please contact the Technical Sales Department on

01293 422800 or email:

[email protected]

Electrical Engineering

Industry standard electricals

Electrical Requirements: Depending on Actuator and configuration

Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.


Photo Gallery



Warning and information signs are recommended to be installed with all automatic equipment to advise users of its operation

Bi-folding Gate Warning Sign

Indicates and warns users of the swing of a bi-folding gate during opening and closing

Traffic Light System

Traffic Light systems can be installed with Automatic Gate systems to advise all users of its position. 100mm traffic light head can be pole or mounted on control cabinet

Vehicle Detector Loops

Vehicle detector loops installed beneath the road surface to detect vehicles. This will prevent the automatic equipment from closing on a vehicle within the aperture. Safety induction loops cut into the road surface. This will prevent the gate from closing on a vehicle within the aperture.

Safety Photocells

Safety Photocells produce beams of light which cross the road way to monitor vehicle and pedestrian movement. If an object breaks this beam, the automatic equipment will stop & reverse. On gate installations, two pairs of photocells are usually fitted. Ultra Sonic Sensors are also available.

Gate Safety Edge

Safety Edges are normally fitted to automatic gates. However they can also be installed beneath a barrier boom. Safety edges prevent the barrier lowering on a person or vehicle in the event it is activated. Safety edges are flexible strips which, if depressed, send a signal to the power source to stop.

Automatic Bi-folding Gates

For Automatic Gates, safety accessories and devices, please view the Actuator product page.

Gate Infill

Weldmesh should be clipped to the gates infill bars infill to prevent pedestrians putting their limbs through.
Other infills include palisade pales, sheet and wood infills. For more information please Security Gate Infills page


Sounders/Audible Alarms provide an audible warning that the automatic equipment is in operation.

Flashing Beacon

Flashing Beacons provide a visual warning that the automatic equipment is in operation.
