IWA 14 Shallow Terra Jupiter Bollards 7.2t @ 50mph

IWA 14 Shallow Terra Jupiter Bollards

IWA 14 Shallow Terra Jupiter Bollards – 7.2t @ 50mph

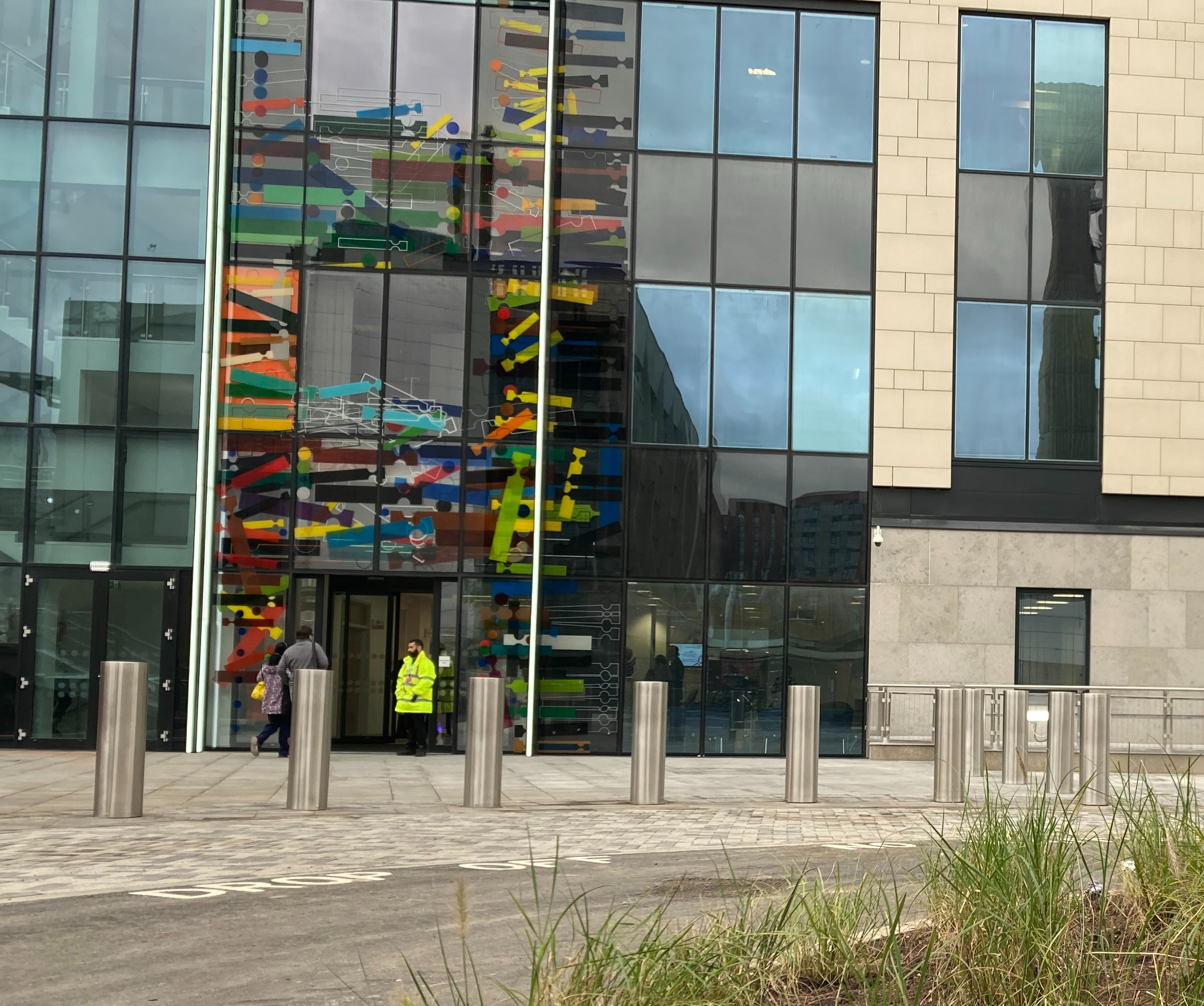

The IWA 14 Shallow Depth Static Terra Jupiter Bollard is a counter terrorist bollard, successfully IWA 14 impact tested stopping a 7.2t vehicle travelling at 50mph (80kph).

The technology built into the Biscuit Bollards core allows a shallow foundation depth of only 200mm which is a fraction of the depth of typical impact tested products. The Shallow Terra Jupiter Bollards provide a high level of protection against large Hostile Vehicles travelling at high speeds within inner city areas where limited foundation depths are available.

Shallow foundation technology has proved invaluable within city centres, outside airports, skyscrapers and other applications where underground services such as utilities, car parks and basements prevent standard depth equipment being installed. Not only are installation costs greatly reduced, disruption is also greatly minimised when excavating.

IWA 14-1 Static & Rising Bollards are required to be installed at 1200mm between upright bollard faces to meet IWA 14-2 guidelines.

Polyester Powder Coated as standard
For Sleeve options please see Accessories tab or the Bollard Sleeve page

    Benefits & Features

  • Shallow Foundations of only 200mm – ideal for inner city sites where there are limited foundation depths due to underground services and utilities
  • Quick and easy to install – less disruption to site and business
  • More environmentally friendly – 25% less concrete used than a standard static bollard installation
  • Stackable and easy to transport
  • Can match the decorative sleeves on the Rising Terra Universal Bollard and Terra Jupiter Bollard

IWA 14 Shallow Depth Static Terra Jupiter Bollard 7.2t@50mph Specifications

Features

The IWA 14 Shallow Depth Static Terra Jupiter Bollard 7.2t @ 50mph

    Basic Specs

  • IWA 14 Classification Code: V Static /7200[N2A]/80/90:8.7
  • Height above ground: 1000mm
  • Diameter: 273mm diameter
  • More details

  • Construction: S355 structural steel plate is a high-strength low-alloy European standard structural steel
  • Shallow Embedment Depth 200mm, Foundation Type B
  • Finish: Shotblasted, hot zinc sprayed (galvanised), primed and finished with a final coat of polyurethane paint.
  • Optional finish: 316 Stainless Steel Satin finish or bead blasted sleeves with dome or mitre tops. Other decorative sleeves available on request
  • Accreditations: Secured by Design, BRE Global

Civil Engineering

Shallow Biscuit Foundation Depths 200mm

For more information please contact the Technical Sales Department on

01293 422800 or email:

[email protected]

Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.

Product Video



Photo Gallery

Accessories

Stainless Steel Bollard Sleeves

Frontier Pitts have a portfolio of sleeves for our Planet range of HVM Terra Bollards. Options below include mitre and dome tops, different types of stainless steel finishes and the choice of colour bands and engraving.

Polyester Powder Coated Bollard Sleeves

Frontier Pitts have a portfolio of sleeves for our Planet range of HVM Terra Bollards. Polyester Powder Coated Sleeves pictured here with recessed banding

Mitre Top

Stainless Steel Mitre Top. Available in five styles, including plain, single and double band designs

Semi Domed Top

Stainless Steel Semi Dome Top. Available in five styles, including plain, single and double band designs

Finish: Satin Polished Stainless Steel

Satin–polished 320 grit (0.5 micron) stainless steel finish

Finish: Bead Blasted Stainless Steel

Our bead blasting stainless steel finish achieves no pitting or distortion of the final surface. N.B. distortion is dependant on material thickness

Finish: Powder Coating

Powder coated paint finish in clients choice of RAL colour.

Reflective Banding

Another option for the finish of the bollard is reflective banding. The reflective banding can be deemed a necessity to ensure the bollard stands out from the architecture of the landscape and/or building. Bollard banding is available in a range of colours and dimensions, with option on the number of bands on the bollard, and position (top of bollard, top and bottom of bollard). The colour of the banding can also reflect the branding of the site company.

Personalised Engraving

In addition to reflective banding on the static bollards to incorporate the sites corporate brand image, Frontier Pitts can also provide corporate engraving on the stainless steel bollard sleeve.
