IWA 14 – 7.2t @ 30mph

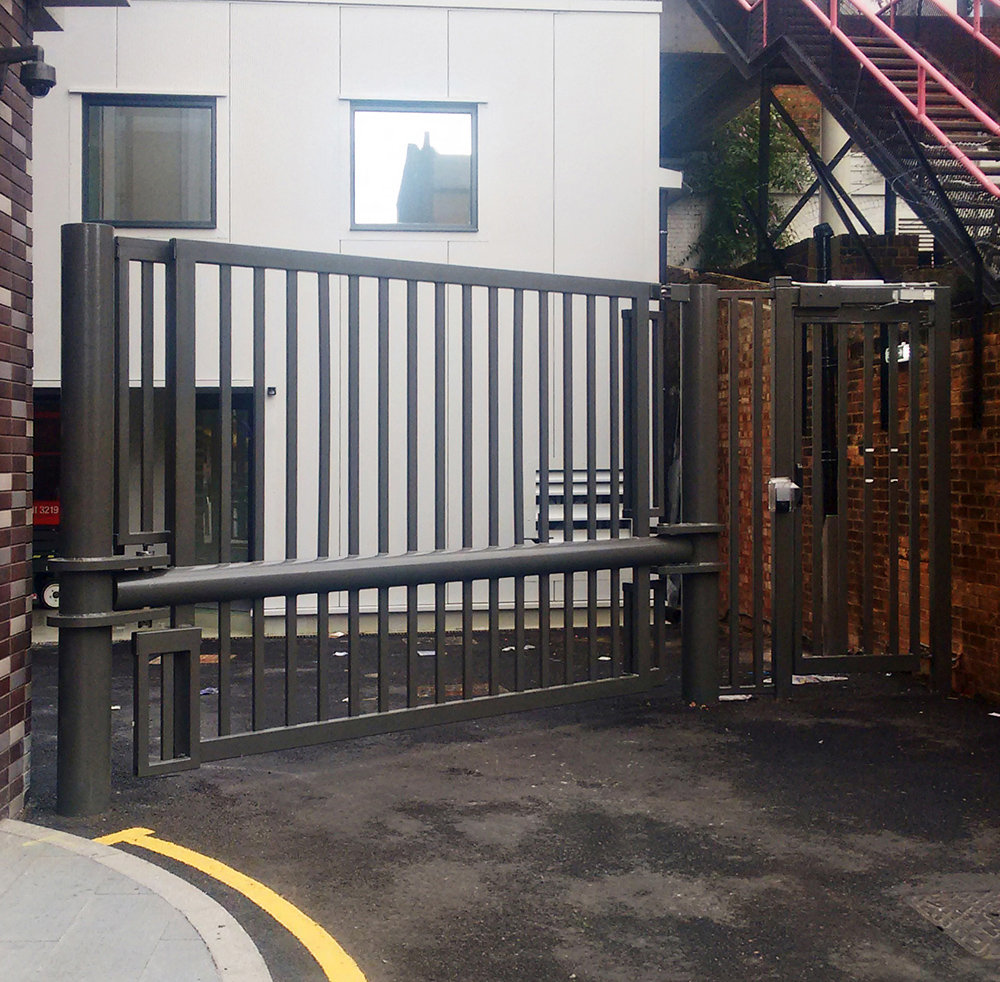

The IWA 14 Terra 180° Hinged Gate is the enhanced version of the Terra 180° Swing Barrier; the IWA 14-1 impact tested, Bi-directional, Lightweight, manual swing HVM Gate which is easy to install and easy to operate.
The Terra 180° Swing Gate has been successfully impact tested to IWA-1 stopping a 7.2t vehicle travelling at 48kph (30mph).
At the forefront of technology, the sleek, manually operated Terra 180° Hinged Gate is the ideal solution for access points which need to be secured with occasional access, out of hours security, or remote locations with power supply restrictions.
The Terra Ultimate 180° Hinged Gate is easily installed requiring a typical foundation depth of 600mm (dependent on actuator), securing apertures up to 4500mm subject to height and infill. The Terra 180° Hinged Gate is secured by an anti-tamper locking mechanism which encases the gates locking pin and is resistant from attack by a wide array of hand tools and battery powered tools.
The Terra 180° Hinged Gate is a bi-directional HVM Gate, available with right or left hand hinging, therefore the impact beam can be opened in either direction depending on site requirements.
BENEFITS & FEATURES
- Successfully impact tested to the new International IWA 14-1 specification
- Bi-directional Hinged Gate; the impact beam can be opened in either direction depending on site requirements
- Sleek Design
- Foundation Type B; shallow embedment depths of only 350mm required
- Manual operation; Ideal for remote locations with power supply restrictions.
- Easy to install and operate
- The Terra 180° Hinged Gate is secured by an anti-tamper locking mechanism which encases the gates locking pin and is resistant from attack by a wide array of hand tools and battery powered tools.
- Maximum boom length: 4500mm
- Enhanced version of the Terra 180 Swing Barrier which IWA 14 Tested dimensions : boom length 6000mm. Maximum Gate width 4500mm subject to height and infill
- Crash beam height: 942mm
IWA 14 Terra 180° Hinged Gate 7.2t@30mph Specifications
FeaturesIWA 14 Terra 180° Hinged Gate 7.2t@30mph |
Basic SpecsMore details |
Civil Engineering |
For more information please contact the Technical Sales Department on
01293 422800 or email: |
Electrical EngineeringIndustry standard electricals |
Electrical Requirements: Depending on actuator |
Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.
Product Video
Photo Gallery
Accessories
Signage |
Warning and information signs are recommended to be installed with all automatic equipment to advise users of its operation |
Hinged Gate Warning Sign |
Indicates and warns users of the swing of a hinged gate during opening and closing |
|
Traffic Light systems can be installed with Automatic Gate systems to advise all users of its position. 100mm traffic light head can be pole or mounted on control cabinet |
Vehicle Detector Loops |
Vehicle detector loops installed beneath the road surface to detect vehicles. This will prevent the automatic equipment from closing on a vehicle within the aperture. Safety induction loops cut into the road surface. This will prevent the gate from closing on a vehicle within the aperture. |
Safety Photocells |
Safety Photocells produce beams of light which cross the road way to monitor vehicle and pedestrian movement. If an object breaks this beam, the automatic equipment will stop & reverse. On gate installations, two pairs of photocells are usually fitted. Ultra Sonic Sensors are also available. |
Gate Safety Edge |
Safety Edges are normally fitted to automatic gates. However they can also be installed beneath a barrier boom. Safety edges prevent the barrier lowering on a person or vehicle in the event it is activated. Safety edges are flexible strips which, if depressed, send a signal to the power source to stop. |
Automatic Hinged Gates |
For Automatic Gates, safety accessories and devices, please view the Actuator product page. |
Gate Infill |
Weldmesh should be clipped to the gates infill bars infill to prevent pedestrians putting their limbs through. Other infills include palisade pales, sheet and wood infills. For more information please Security Gate Infills page |
Sounder |
Sounders/Audible Alarms provide an audible warning that the automatic equipment is in operation. |
Flashing Beacon |
Flashing Beacons provide a visual warning that the automatic equipment is in operation. |
