IWA 14 Static Terra Comet Bollards 3.5t @ 30mph

IWA 14 Static Terra Comet Bollards

  • IWA 14 Static Terra Comet Bollards – 3.5t at 30mph

    • The IWA 14 Static Terra Comet Bollard is a counter terrorist crash bollard, successfully IWA 14 impact tested stopping a 3.5t vehicle travelling at 30mph (48kph).

    IWA 14-1 Static & Rising Bollards are required to be installed at 1200mm between upright bollard faces to meet IWA 14-2 guidelines.

    Polyester Powder Coated as standard
    For Sleeve options please see Accessories tab or the Bollard Sleeve page

    **For the HVM Compact Terra Barrier with the same rating, please click here**

    • 3.5t @ 30mph
    • Classification Codes: V/3500[N1]/48/90:-1.0
    • IWA14 Tested Height above ground: 700mm approx

    Contact Technical Sales

    View Case Studies

    Product Brochure

    Data Sheet

    Photos & Videos

    IWA 14 Static Terra Comet Bollards – 3.5t@30mph Specifications

    Features

    IWA 14 Static Terra Comet Bollards – 3.5t @ 30mph

      Basic Specs

    • IWA 14 Classification Code: V Static Bollard/3500[N1]/48/90:-1.0
    • Height above ground: 700mm approx
    • Diameter: 219mm diameter

      • More details

    • Construction: S355 structural steel plate is a high-strength low-alloy European standard structural steel
    • Embedment Depths of only 300mm. Foundation depth 350mm, Foundation Type C
    • Finish: Shotblasted, hot zinc sprayed (galvanised), primed and finished with a final coat of polyurethane paint.
    • Optional finish: 316 Stainless Steel Satin finish or bead blasted sleeves with dome or mitre tops. Other decorative sleeves available on request
    • Accreditations: Secured by Design, BRE Global

    Civil Engineering

    Foundation depth 300mm

    		 For more information please contact the Technical Sales Department on

    01293 422800 or email:

    [email protected]
    Specifications subject to change and are dependant on product options. Please contact Frontier Pitts to request more information.



    Photo Gallery

    Product Video

    Accessories

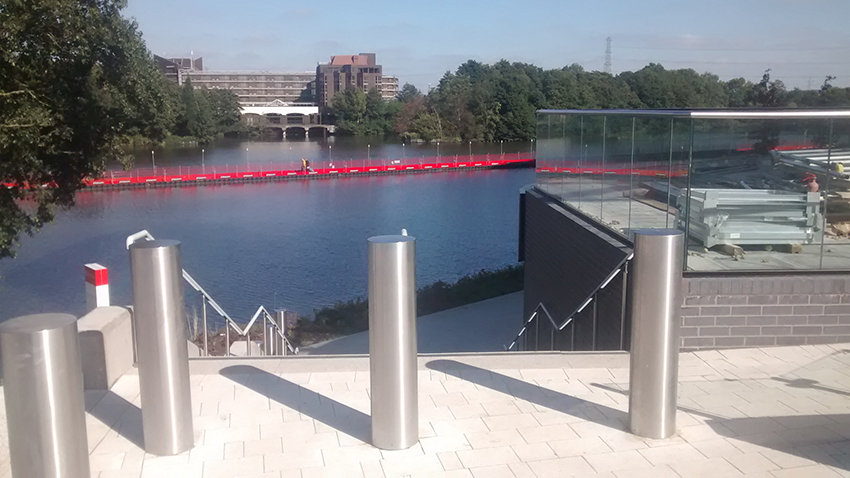

    Stainless Steel Bollard Sleeves

    		 Frontier Pitts have a portfolio of sleeves for our Planet range of HVM Terra Bollards. Options below include mitre and dome tops, different types of stainless steel finishes and the choice of colour bands and engraving.

    IWA 14 Static Terra Comet BollardsPolyester Powder Coated Bollard Sleeves

    		Frontier Pitts have a portfolio of sleeves for our Planet range of HVM Terra Bollards. Polyester Powder Coated Sleeves pictured here with recessed banding

    Mitre Top

    		 Stainless Steel Mitre Top. Available in five styles, including plain, single and double band designs

    Semi Domed Top

    		 Stainless Steel Semi Dome Top. Available in five styles, including plain, single and double band designs

    Finish: Satin Polished Stainless Steel

    		 Satin–polished 320 grit (0.5 micron) stainless steel finish

    Finish: Bead Blasted Stainless Steel

    		 Our bead blasting stainless steel finish achieves no pitting or distortion of the final surface. N.B. distortion is dependant on material thickness

    Finish: Powder Coating

    		 Powder coated paint finish in clients choice of RAL colour.

    Reflective Banding

    		 Another option for the finish of the bollard is reflective banding. The reflective banding can be deemed a necessity to ensure the bollard stands out from the architecture of the landscape and/or building. Bollard banding is available in a range of colours and dimensions, with option on the number of bands on the bollard, and position (top of bollard, top and bottom of bollard). The colour of the banding can also reflect the branding of the site company.

    Personalised Engraving

    		 In addition to reflective banding on the static bollards to incorporate the sites corporate brand image, Frontier Pitts can also provide corporate engraving on the stainless steel bollard sleeve.
