IWA 14 Terra G8 Sliding Gate 7.2t@40mph

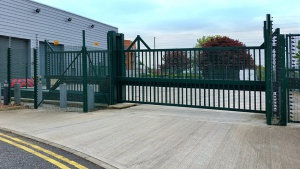

IWA 14 HVM Terra G8 Sliding Cantilevered Gate

The Security Gate Experts extend their Hostile Vehicle Mitigation Sliding Gate portfolio.

From the creators of the PAS 68 Terra Gate, the only HVM Gate in the World to be successfully PAS 68 impact tested whilst in the half open position, Frontier Pitts introduces the IWA 14 Terra G8 Cantilevered Sliding Gate. The Terra G8 is based on the design of our renowned LoTracker Sliding Gate, which has been manufactured for the past 20 years with numerous installations around the World. To illustrate our commitment to constant research and development, we simulated an impact test; with results illustrating the gate could stop the energy produced by a 7.2t vehicle travelling at 64kph.

This was followed by the successful impact test of the Terra G8 to the new International IWA 14-1 specification, stopping a 7.2t vehicle travelling at 64kph (40mph), within the aperture.

The sleek Terra G8 can secure entrances of 8m plus, providing Counter Terrorist protection for wider access points and the flexibility to suit individual site requirements. Additionally the Terra G8 can include a Hi SecĀ® Super 10 weld mesh which is a LPS1175 Security Rated 2 intruder resistant infill, offering a high level of resistance to attack by a wide array of hand tools and battery powered tools

Maximum width:      8000mm
Variable heights available up to 3000mm
(standard 2400mm) minimum height 1200mm
IWA 14 Test dimensions :  width 8000mm,
height 3000mm

The Terra G8 Cantilevered Gate is a PSSA Verified product.

IWA 14 Terra G8
Sliding Cantilevered Gate
available with LPS1175 infill

8m+ width security gate

Foundation Type B

Electronically controlled motor drive unit

V/7200[N2A]/64/90:1.8
Test

Part of our extensive PAS 68 HVM Anti Terra Range

Accredited PSSA Verified

IWA14 HVM Terra G8 Sliding Cantilevered Gate post impact test
IWA14 HVM Terra G8 Sliding Cantilevered Gate pre impact test
IWA14 HVM Terra G8 Sliding Cantilevered Gate
IWA 14 HVM Terra G8 Sliding Cantilevered Gate

IWA 14 Terra G8 Sliding Gate 7.2t@40mph Specifications

Specifications subject to change and are dependant on product options.

Please contact Frontier Pitts to request more information.

Features

The IWA 14 Terra G8 Sliding Cantilevered Gate - 7.2 @ 40mph

IWA 14 Classification Code:
V Sliding Gate/7200[N2A]/64/90:1.8
Height: 300mm.
Variable Heights available up to 3000mm
Width: Variable +8000mm
Construction: The gate is a fully welded construction of steel sections including specially designed Frontier Pitts' Steel Impact Beam. Various infills are available including fully welded vertical bar and high security 358 welded mesh infill to BS 1722 Part 10 and 14.
Foundation Type B
Finish: Shotblasted, hot zinc sprayed (galvanised), primed and finished with a final coat of polyurethane paint.
Options: UPS (Uninterrupted Power Supply), EFO (Extra Fast Operation), Disengaging Box - manual override, High Security Cabinet, Anti-tamper alarms
Safety: Safety-edges, Vehicle Detector Loops, Safety Photocells, LED Traffic light heads, Flashing beacon, Audible alarm
Normal Operating Speed/Time: 250mm per second Depending on configuration and subject to on site risk assessment to ensure the gate would comply with BS EN 12453
EFO Operating Speed/Time: 600mm/second Depending on configuration and subject to on site risk assessment to ensure the gate would comply with BS EN 12453
Duty Cycle: 100% duty rating
Controls: The programmable logic controller (PLC) with built in safety features will accept inputs from access control systems including access card, voice, etc. Push button as supplied as standard
Accreditations: Secured by Design, BRE Global

Civil Engineering

Shallow Embedment Foundation depths of only 350mm

For more information please contact the
Technical Sales Department on
Tel: 01293 422800 or
email: sales@frontierpitts.com

Electrical Engineering

Industry standard electricals

Electrical Requirements

230v single phase, earth

Depending on configuration

Signage

Warning and information signs are recommended to be installed with all automatic equipment to advise users of its operation

Pedestrian Warning Sign

Normally placed on the barrier cabinet. Warns pedestrian of the automatic barrier.

Traffic Light System

Traffic Light systems are highly recommended to be installed with all road blocker and bollard systems to advise all users of its position. 100mm traffic light head can be pole or mounted on control cabinet

Safety Photocells

Safety Photocells produce beams of light which cross the road way to monitor vehicle and pedestrian movement. If an object breaks this beam, the automatic equipment will stop & reverse. On gate installations, two pairs of photocells are usually fitted. Ultra Sonic Sensors are also available.

Vehicle Detector Loops

Vehicle detector loops installed beneath the road surface to detect vehicles. This will prevent the automatic equipment from closing on a vehicle within the aperture. Safety induction loops cut into the road surface. This will prevent the gate from closing on a vehicle within the aperture.

Gate Safety Edge

Safety Edges should be fitted to all automatic gates. Safety edges prevent the gate closing on a person or vehicle in the event it is activated. Safety edges are flexible strips which are fixed to the edge of a gate where there is a risk of a crushing or shearing hazard. If the safety edge is depressed a signal is sent to the power source to stop.

Pedestrian Guard Rail

A Pedestrian Guard Rail (fence panels) should be fitted around the runback area of the sliding gate. This is to prevent serious injury to a person should they stray into that area whilst the gate is operating.

Gate Infill

Weldmesh should be clipped to the gates infill bars infill to prevent pedestrians putting their limbs through.

Other infills include palisade pales, sheet and wood infills.

Sounder

Sounders/Audible Alarms provide an audible warning that the automatic equipment is in operation.

Flashing Beacon

Flashing Beacons provide a visual warning that the automatic equipment is in operation.

UPS - Uninterrupted Power Supply

In the event of a power failure or sabotage an interrupted power supply system can open and close the Terra Gate for a number of predetermined operations is available.

Extra Fast Operation

Increases the products speed of operation to a few seconds. Dependent on configuration. Please contact Technical Sales for more information on 01293 422800

High Security Cabinet

Provides high security protection to the control cabinet of Frontier Pitts PAS 68 Anti Terra product range. Special Security cabinets can be fitted and tested to BRE 1175 with 6 point security locking mechanism and fire resistance to DIN 4102. High security mauer key lock, Class A, ECBS/ENV 1300 approved, with similar rating to BS EN 1143-1 1997.

Security Rating 3 High Security Control Cabinet

Provides high security protection to the control cabinet of Frontier Pitts PAS 68 Anti Terra product range has been approved to Security Rating 2. Special Security cabinets can be fitted and tested to BRE 1175 with 6 point security locking mechanism and fire resistance to DIN 4102. High security mauer key lock, Class A, ECBS/ENV 1300 approved, with similar rating to BS EN 1143-1 1997.
